Lock Body

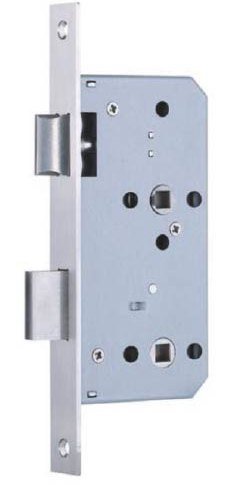

Bathroom Lock
LB-WC
Mortise bathroom (WC) lock with latch and privacy dead bolt operated by a thumb-turn follower.
Specifications
| Parameter | Value |
|---|---|
| Follower | 7 / 8 / 9 mm |
| Dead bolt follower | 5 / 8 mm |
| Distance | 78 mm |
| Backset | 55 / 60 mm |
| Forend type | Square head · round head |
| Forend thickness | 3 mm |
| Forend width | 20 / 22 / 23 / 24 mm |
| Finishes | Satin Stainless Steel |
| Standards | CE |
Technical Documents
Datasheets, CAD files and finish samples are available on request.
